CM3588 Plus Nas Kit - Rockchip RK3588 CM - NAS / Server / Android TV

• Quick Start： WIKI: Click here
• Tips
  • If you are installing all M.2 SSDs, you will need to choose a 12V power supply with a capacity of 80W or more.
    Power 12V DC input, 80w Max: CM3588 20W, USB+GPIO+MIP|+Type-C 20W, 4 x M.2 SSD 39.6W
  • The NAS kit does not include a power supply. To purchase a power supply, please click the link:12V 2A DC Power: 12v2a power supply adapter
  • Or you can choose 12V 5A power supply, please click the link:12v 5A power supply adapter

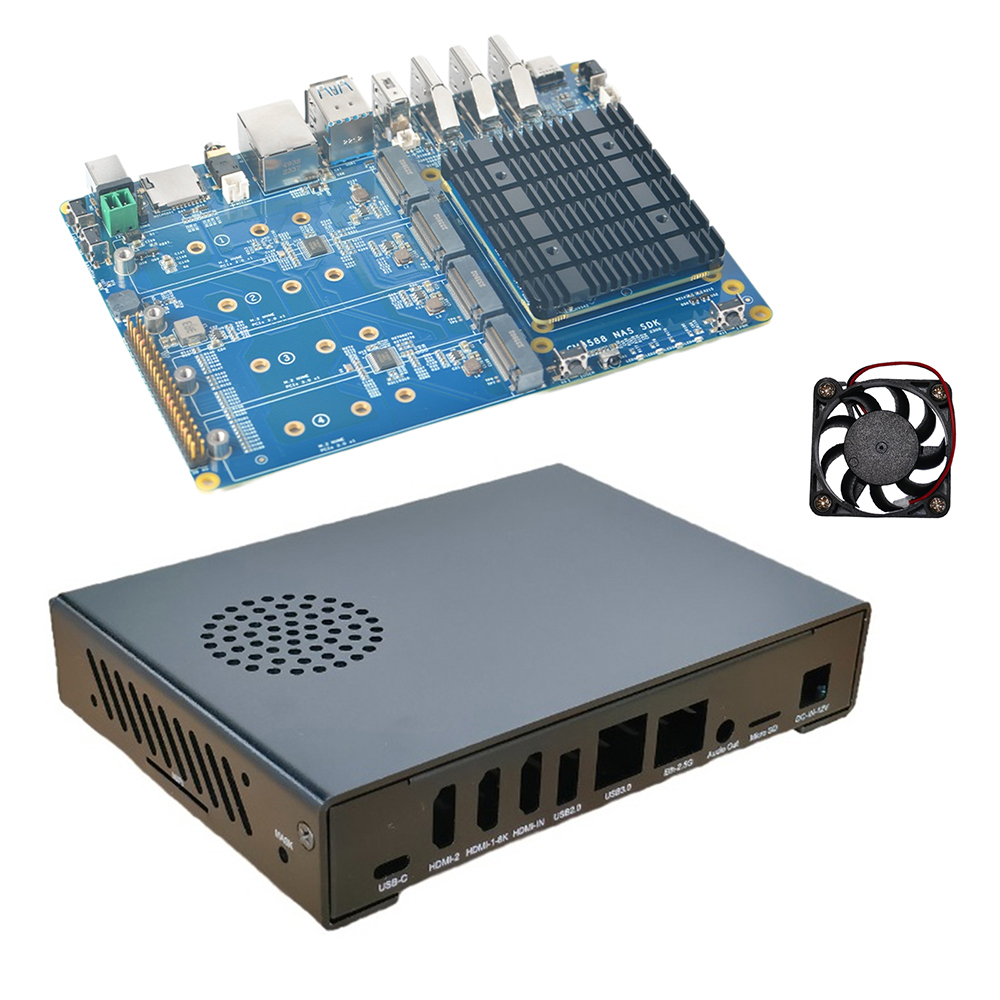

• Purchase metal case separately: https://www.youyeetoo.com/products/cm3588-nas-kit-case

According to customer feedback, the CM3588 NAS Kit is incompatible with certain Western Digital SSDs, including the WD Blue SN580 NVMe SSD and the WD Black SN850 NVMe SSD. It is recommended to use NVMe SSDs of other brands or models. If you are using one of these drives, note that Western Digital has officially released firmware updates. We strongly recommend backing up your data, connecting the drive to a Windows PC, and using Western Digital's official tool to update the firmware to the latest version.

More details, please refer to the following news reports:
https://forum.proxmox.com/threads/new-critical-western-digital-sandisk-nvme-drive-firmware-update-available.156255/
https://support-en.sandisk.com/app/answers/detailweb/a_id/51469

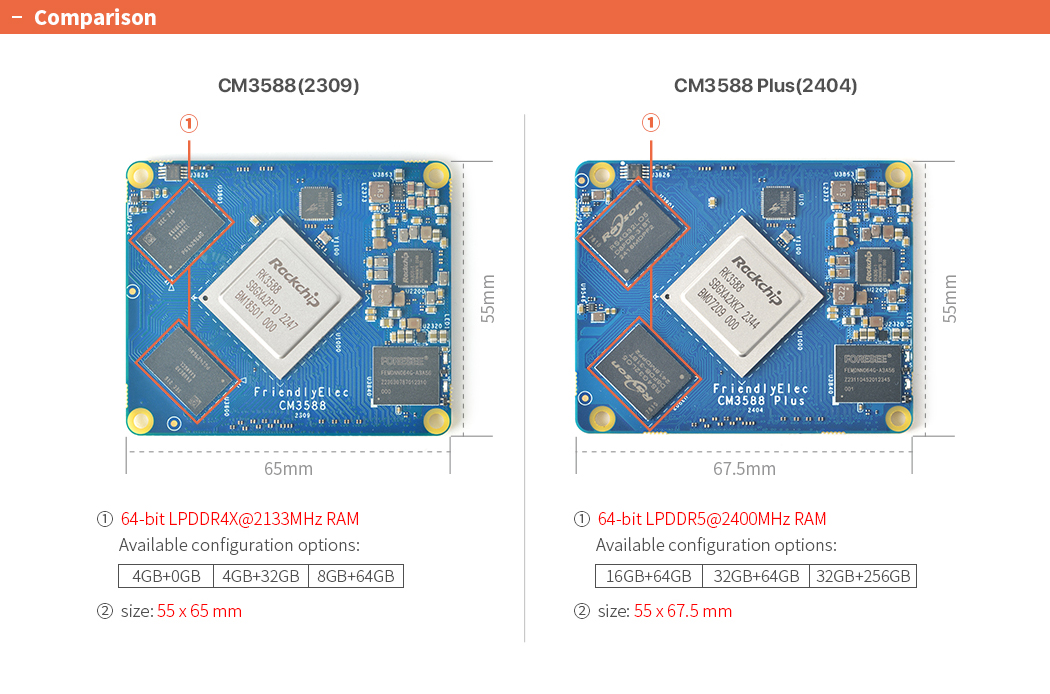

CM3588 VS CM3588 PLUS



Introduction

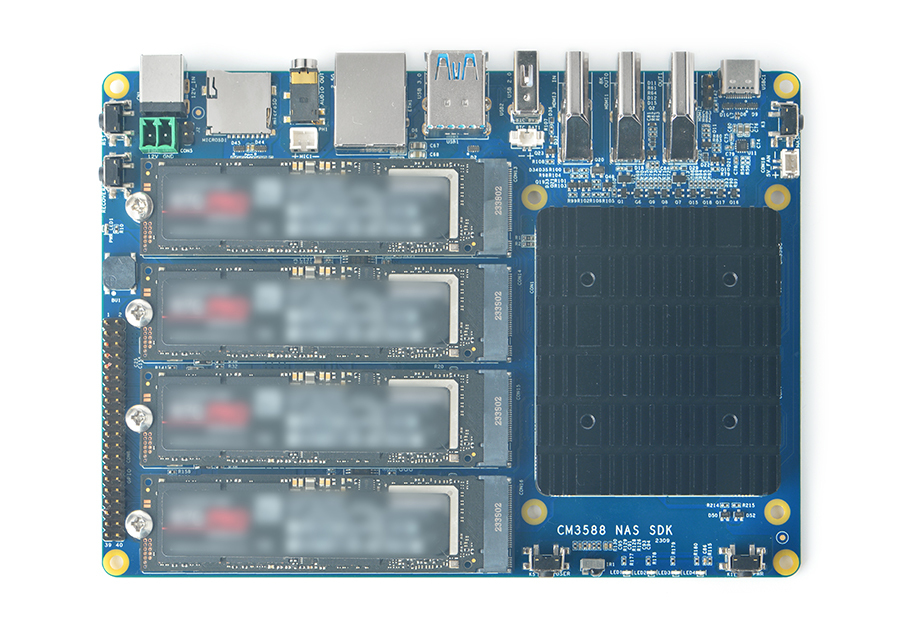

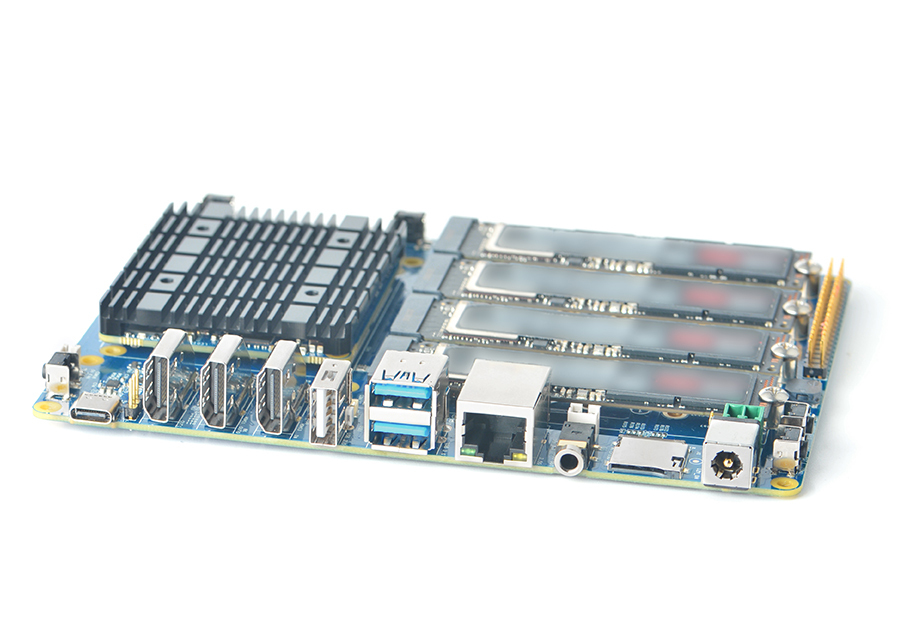

The CM3588 Plus NAS Kit is a carrier board designed based on the CM3588 Plus core module. It includes 4x M.2 Key M PCIe 3.0 x1 slots, 2x USB3.0 Type-A ports, 1x USB3.0 Type-C interface with DP support, dual HDMI OUT ports, and one HDMI IN port, and a 2.5Gbps Ethernet interface.

Features

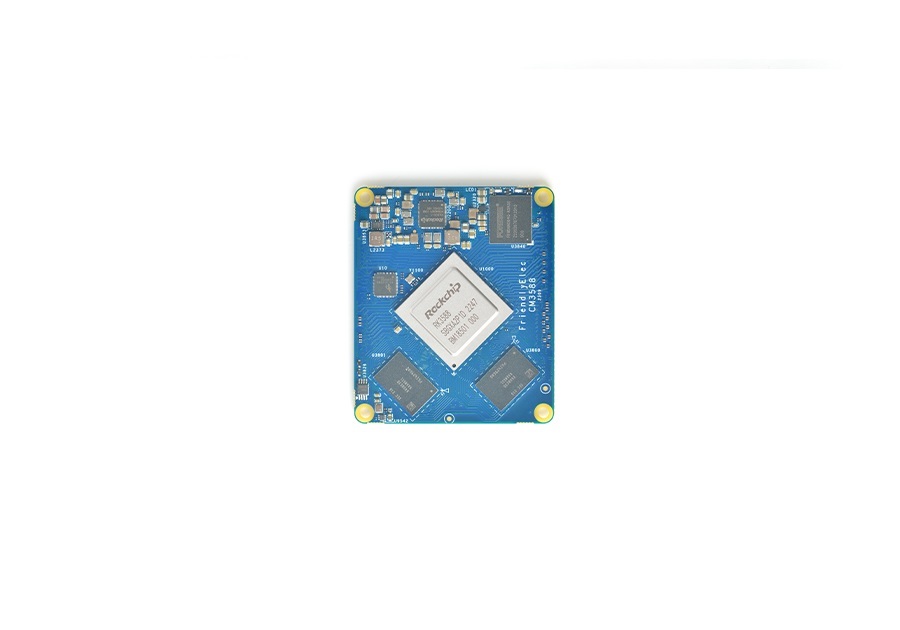

• The CM3588 Plus is a high-performance ARM module designed and developed by FriendlyElec. It is based on Rockchip’s RK3588 SoC. The regular version has 32GB LPDDR4x RAM, and 64GB/256GB eMMC Flash(optional), The CM3588 Plus has four 100-pin connectors, exposing nearly all IO resources.

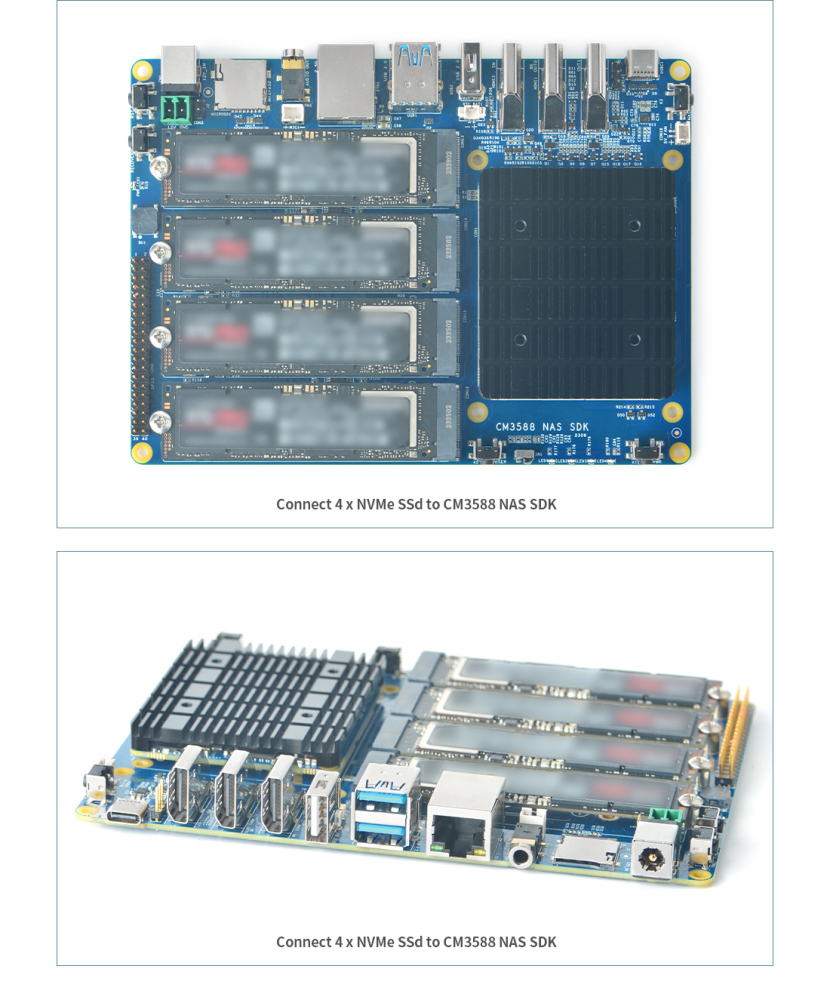

• The CM3588 Plus computing module boasts a variety of peripherals and expansion interfaces. It can connect to a carrier board supporting 4 NVMe high-speed solid-state drives with read/write speeds of up to 1GB/s. Additionally, it includes dual HDMI-Out display interfaces, 1 HDMI-In interface, 2 USB3.0 ports, 1 USB2.0 port, a 2.5G Ethernet interface, and more.
• The carrier board (CM3588 Plus NAS Kit) has 2 HDMI output interfaces and 1 HDMI In interface that can decode and play videos in formats such as up to 8K60p H.265/VP9 and 8K30p H.264, with the ability to record 4K60p H.265 videos.
• The CM3588 Plus offers the OpenMediaVault NAS system and supports various operating systems including Android, Ubuntu, Debian, Buildroot, and OpenWrt. It has well-established software support. It is a perfect platform for startups to develop applications and prototypes in facial detection, machine vision, VR, autonomous driving, deep learning, AI, etc.

Shipping List

Only CM board
1x CM3588 Plus Computer Module

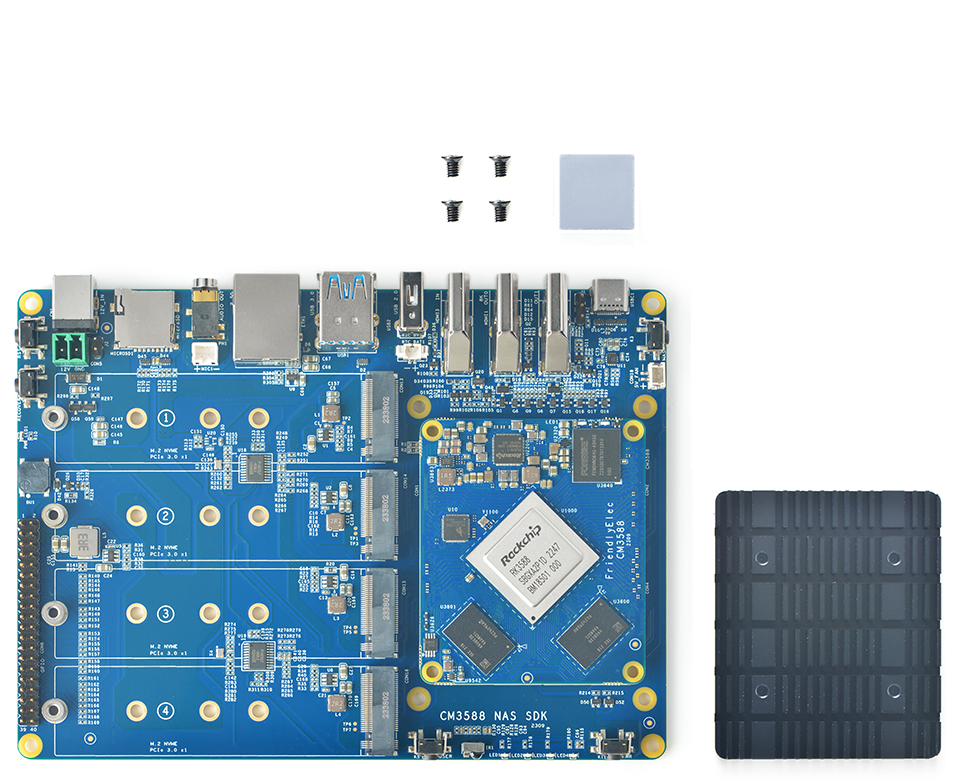

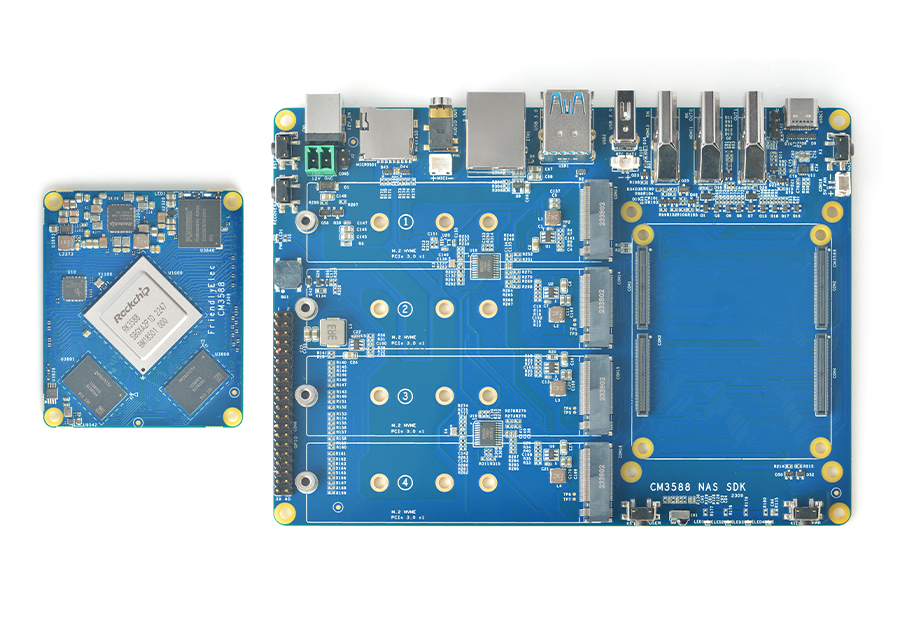

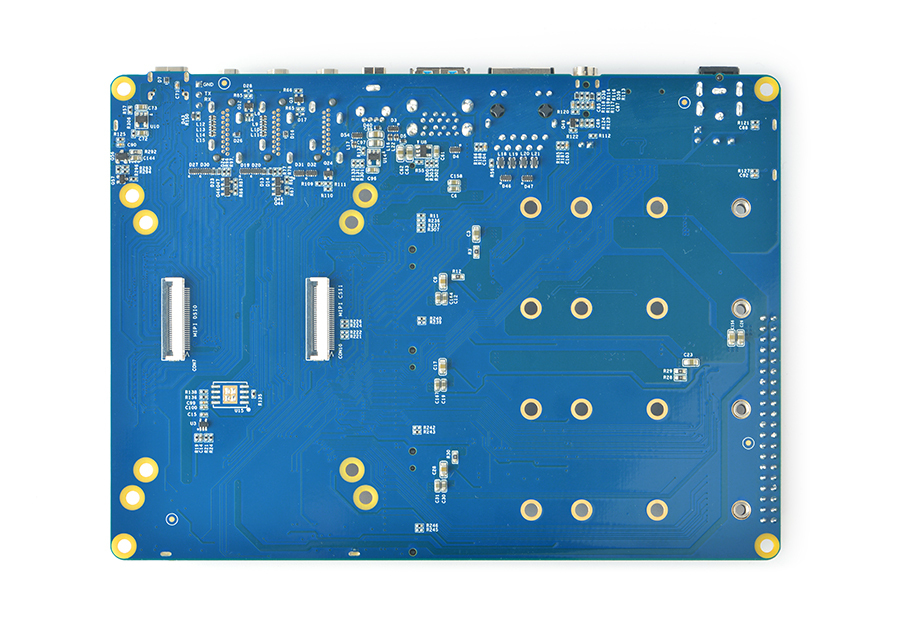

CM board + NAS Carrier Board
1x CM3588 Plus NAS Kit (Power not included)

NAS Carrier Board
1x NAS Carrier Board

Applications

NAS and more

Specification

• SoC: Rockchip RK3588
  • CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
  • GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
  • VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
  • NPU: 6TOPs, supports INT4/INT8/INT16/FP16
• RAM: 64-bit 32GB LPDDR4X at 2133MHz
• Flash: 0GB/64GB/256GB eMMC, at HS400 mode
• 1 x microSD interface, support up to SDR104 mode
• 1 x On-board PCIe 2.5G ethernet controller (RTL8125B)
• USB:
  • 2 x USB 3.1 Gen1 OTG which combo with DP display（up to 4Kp60）
  • 1 x USB 3.1 Gen1 Host
  • 2 x USB 2.0 Host
• PCIe:
  • up to 4 x PCIe interfaces
    • 2 x PCIe 2.1 x1 and 2 x PCIe 3.0 x2
    • or 2 x PCIe 2.1 x1 and 1 x PCIe 3.0 x4
    • or 1 x PCIe 2.1 x1, 1 x PCIe 3.0 x2, and 2 x PCIe 3.0 x1
    • or 4 x PCIe 3.0 x1
• HDMI output:
  • 2 x HDMI outputs which is compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
  • one support displays up to 7680x4320@60Hz, another one support up to 4Kp60
  • Support RGB/YUV(up to 10bit) format
• HDMI input: 1 x HDMI input, up to 4Kp60
• MIPI RX:
  • 2 x 4lane MIPI DPHY CSI RX which support x4 mode or x2+x2 mode ,compatible with MIPI V1.2
  • 2 x 4lane MIPI_D/CPHY_RX
• MIPI TX:
  • 2 x 4-lane MIPI D-PHY/C-PHY Combo PHY TX, compatible with MIPI DPHY 2.0 or CPHY 1.1
• Codec:
  • On-board ALC5616 Codec
  • 1 x stereo headphone output ( 20mW/CH, THD+N <= -80dB, 16Ohm Load )
  • 1 x single-end microphone input
• GPIO:
  • up to 3 x SPIs, 7 x UARTs, 6 x I2Cs, 15 x PWMs, 3 x I2Ss, 1 x SDIO, 81 x GPIOs
• others:
  • low power RTC (HYM8563TS) with backup battery input
  • Support 38Khz IR input
  • MASK button for eMMC update, reset button, Power button, and recovery mode button
  • Debug UART,3.3V level, 1500000bps
  • 2 x GPIO Controlled LED (SYS, LED1)
• Power supply: 5~20VDC input, 15W max
• PCB: 8 Layers, 55x65x1.6mm
• Stacking height: 6.6mm
• Connector: 4 x DF40C-100DP-0.4V(51), the mating connector is DF40HC(3.0)-100DS-0.4V(51)
• Ambient Operating Temperature: 0℃ to 70℃
